Models
We have both permanent and portable options available.
Portable ramps
X3 lengths; 2.3m, 3.0m, and 3.6m. These ramps are built out of lightweight aluminium, a solid timber floor with chunky cleats, and have tapered sides.
Economy ramps
Available in X2 lengths, 4.0m or 6.0m. These ramps can be retrofitted to existing poles, or supplied as a complete self-install kit. The poles have steel counterweights inside them which counter balance the weight of the ramp for easy lifting/lowering.
Permanent loading ramps
vailable in two lengths, 6.0m or 8.0m. The 8.0m ramp is designed to efficiently load to the 4th tier of a truck, while the 6.0m option facilitates loading to the 3rd tier, or 4th tier when installed on a loading bank. Built from durable galvanized steel and featuring a heavy-duty wooden floor, these ramps are built to withstand rigorous use. Choose between a manual or electric winch for added convenience. Our ramps have a catwalk with safety handrail, and an industry-leading 'anti-drop' safety system, ensuring maximum safety during operations. Often integrated into our permanent yard plans, these ramps can be professionally installed by our team or supplied with comprehensive guidelines for self-installation.
Available Sizes
| Loading Ramps | 2.3m Portable | 3.0m Portable | 3.6m Portable | 5.0m Economy | 6.0m Economy | 6.0m Permanent | 8.0m Permanent |
|---|---|---|---|---|---|---|---|
| Truck Deck | 1 | 1 | 1 | 3 | 3 | 3 | 4 |
| Mobile / Fixed | Mobile | Mobile | Mobile | Fixed | Fixed | Fixed | Fixed |
| Material | Aluminium | Aluminium | Aluminium | Aluminium | Galv Steel | Galv Steel | Galv Steel |
| Catwalk | No | No | No | Optional Extra | Optional Extra | Yes | Yes |
| Winch / Counterweight | N/A | N/A | N/A | Counterweight | Counterweight | Winch* | Winch* |
| *Electric or manual winch options |

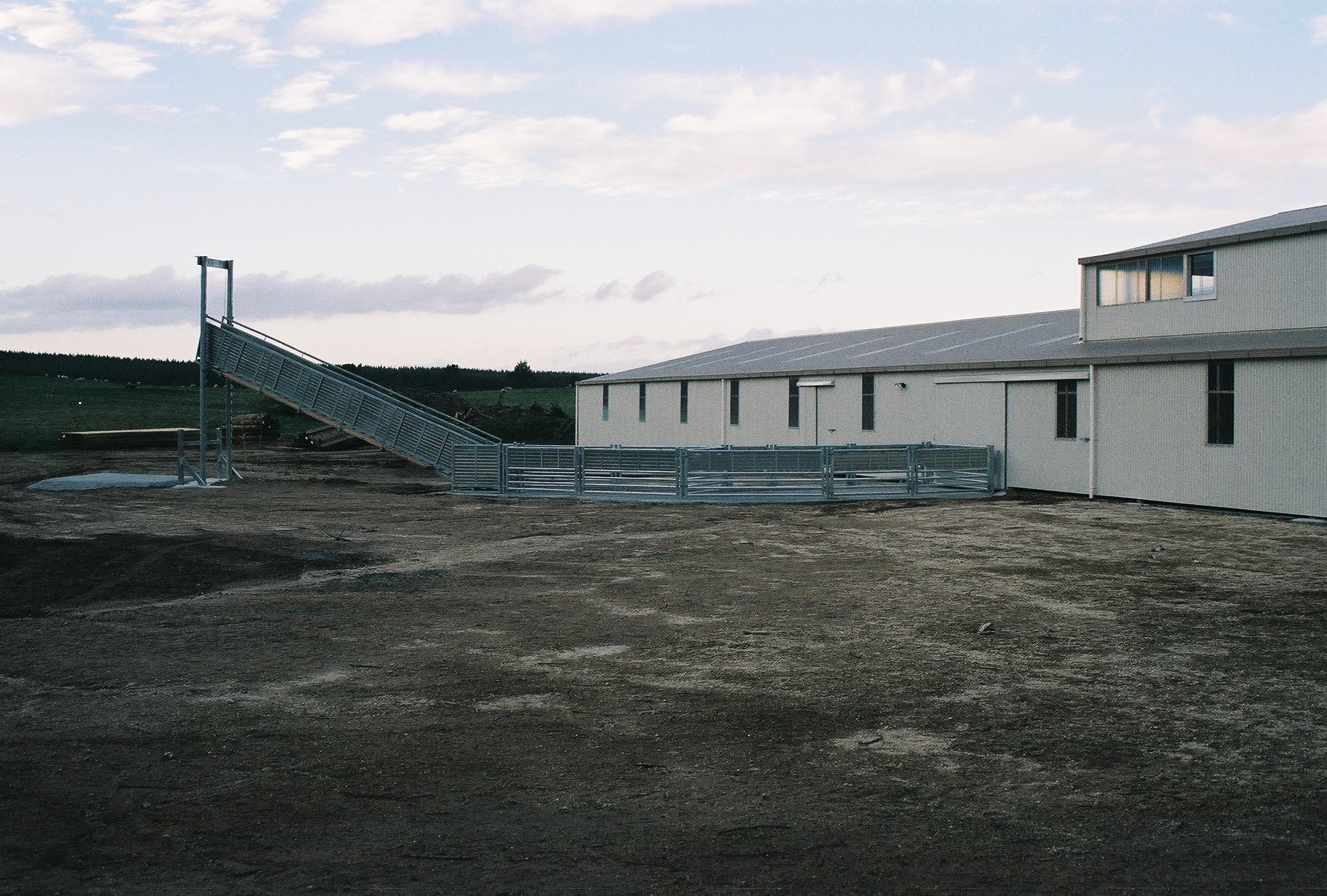

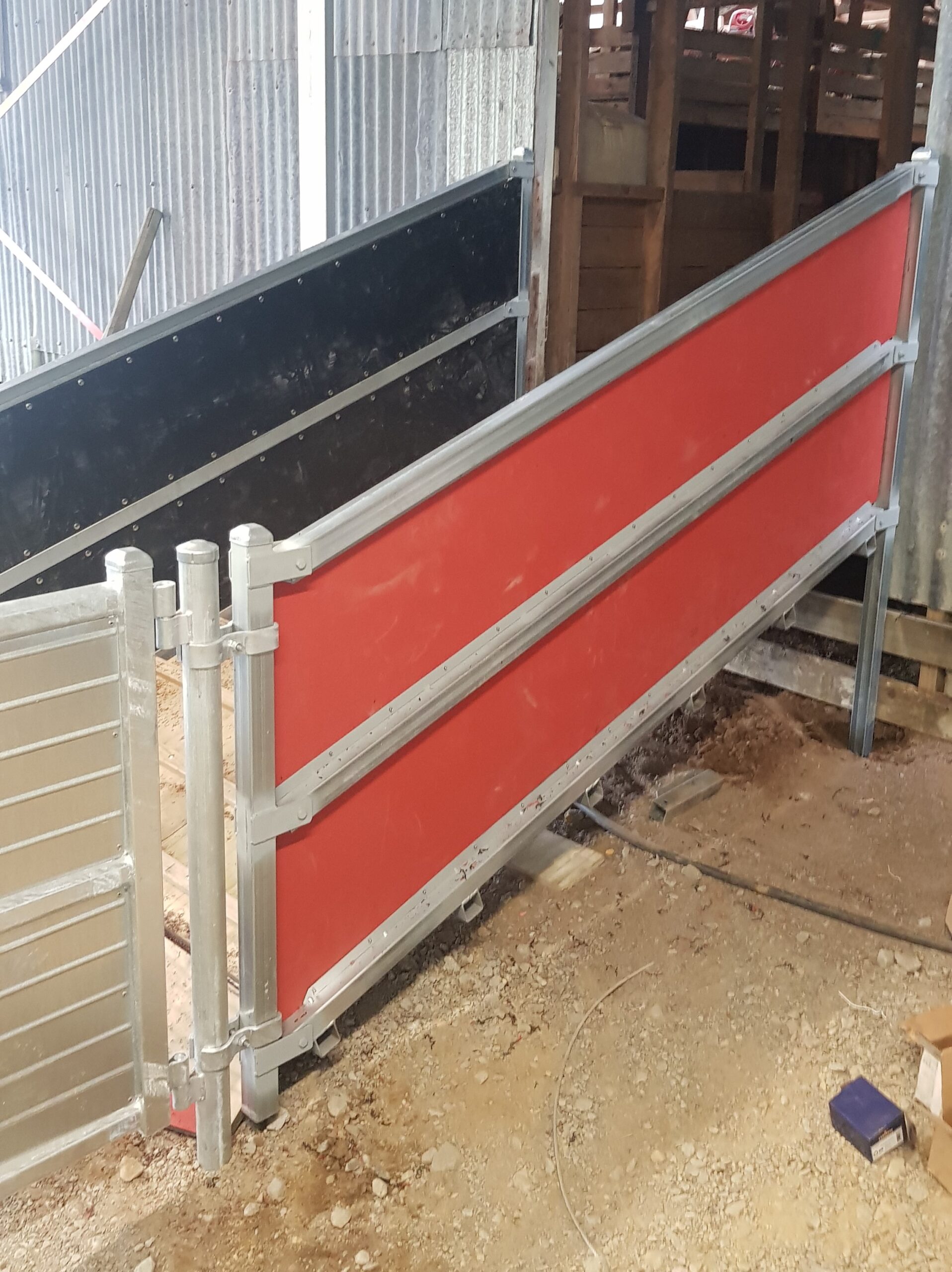

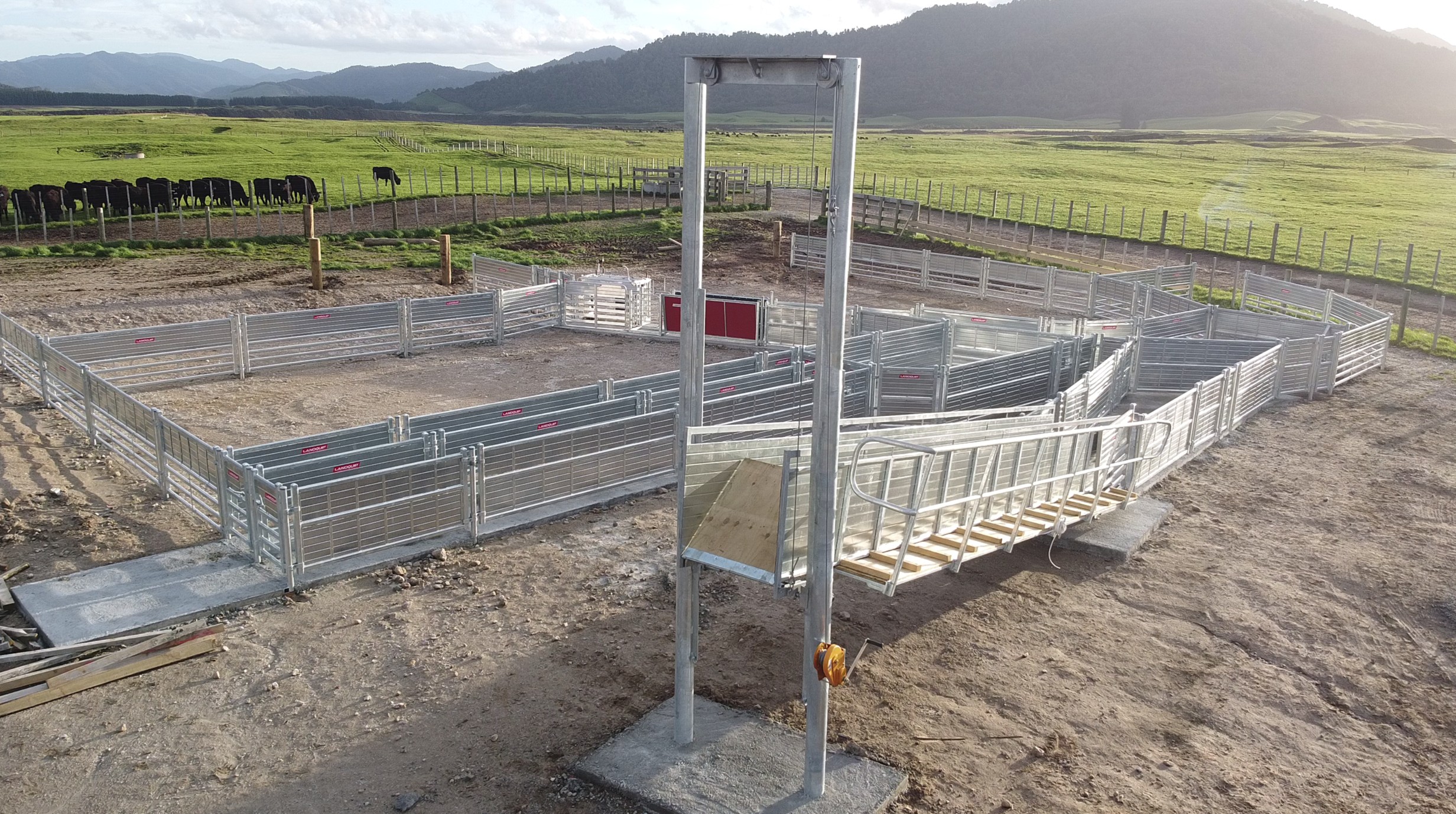

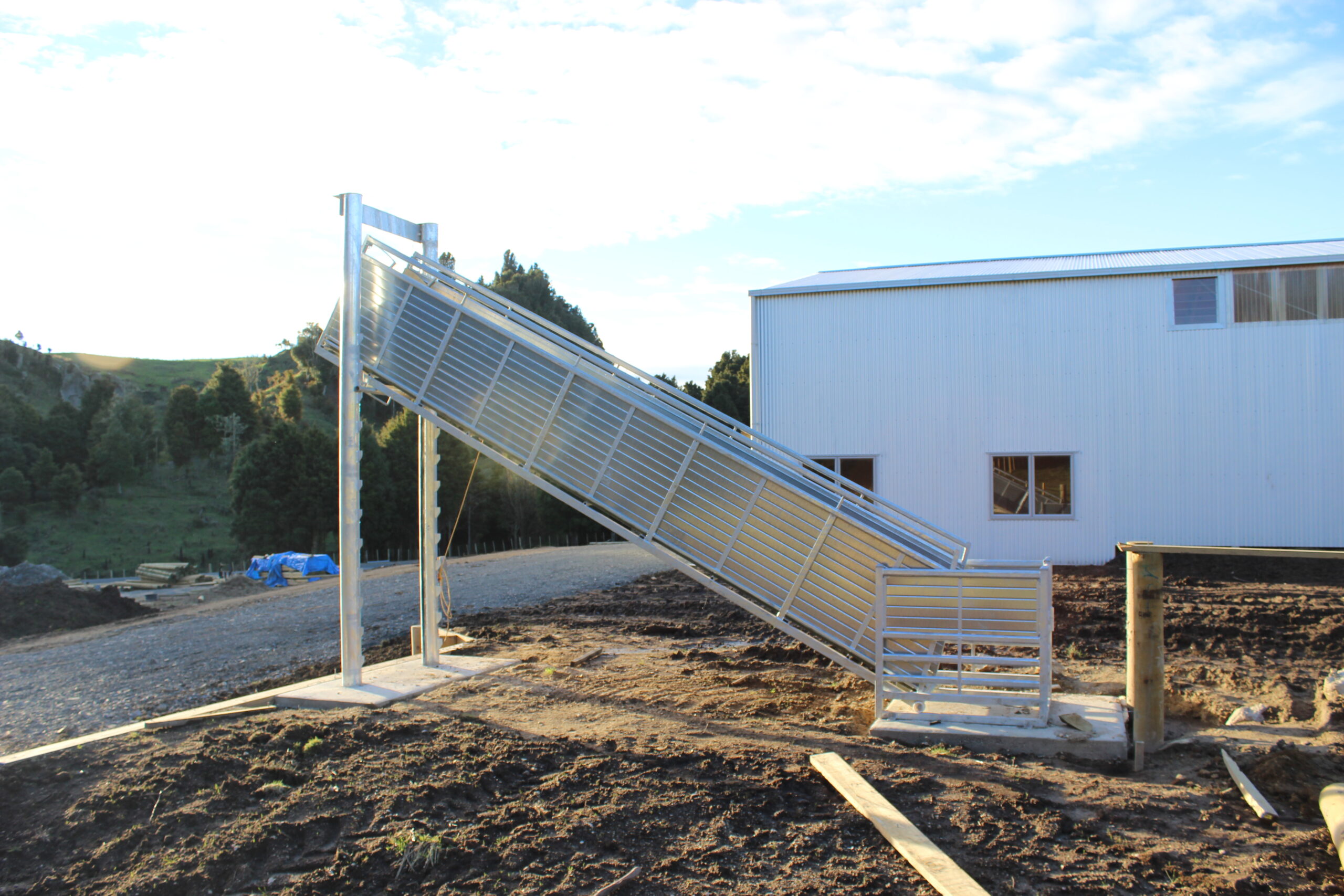

In Use
4 Year Warranty
All Loading Ramps come with Landquip’s renowned ‘Best of breed’ – 4 year warranty Covers any defective workmanship on all parts and components of Loading Ramps
FAQ
-
Do you offer installation?
Yes we do. We have an installation team that carries out installations NZ wide.
-
Do these fit with other brands of sheep handling equipment?
Yes they do, we’re happy to work with any brand of equipment.
-
Can I install the yards myself?
Yes, we supply install plans and advice on how to install yourself, however, its’ recommended to only consider installation if you have experience in building or in another similar industry.
Do you have any questions about Permayards? Call us on +64 6 879 4992
