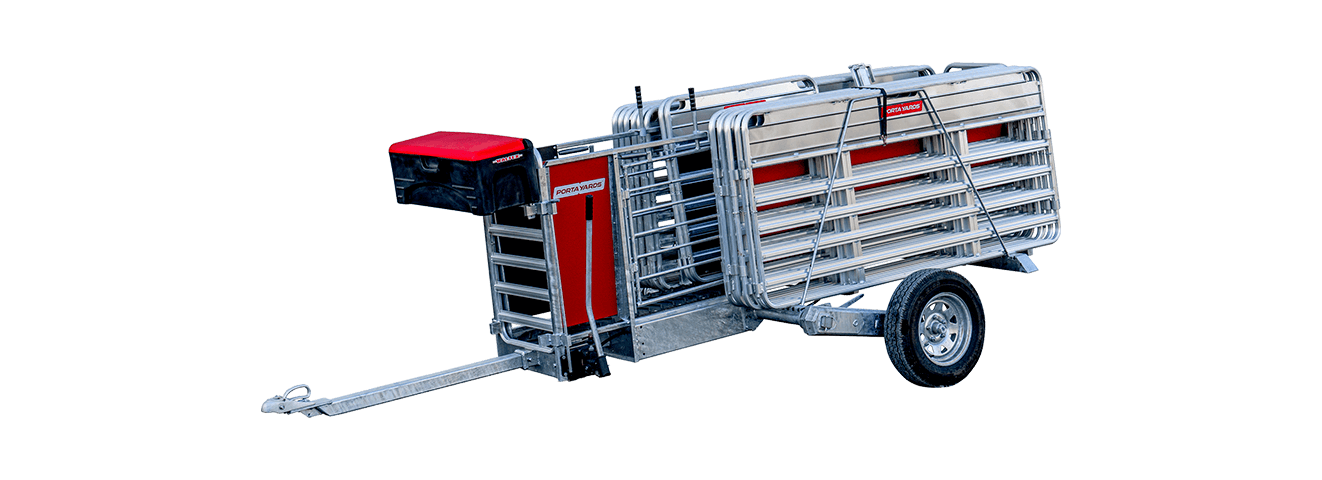

3.0m Standard Portayard

Sheep Handling Equipment

Compatible with all other Portayard components, the 3.0m Standard Portayard is the perfect base set. Designed for optimal mobility and durability, it’s a winner for medium-sized operations.

Features
Included Components
Add-On Options
Specifications

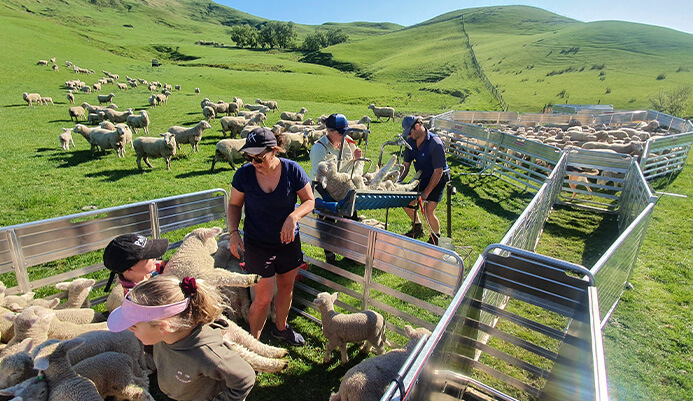

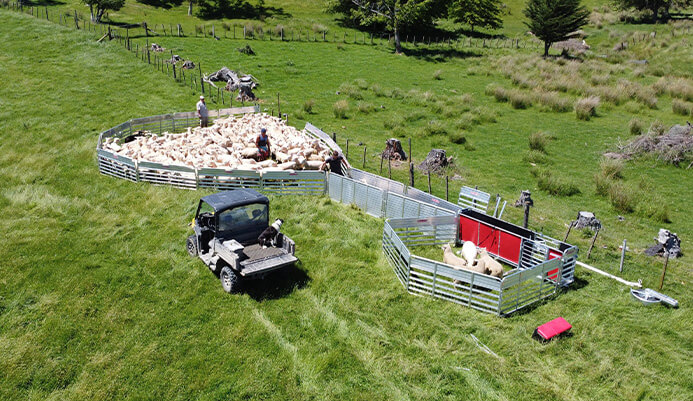

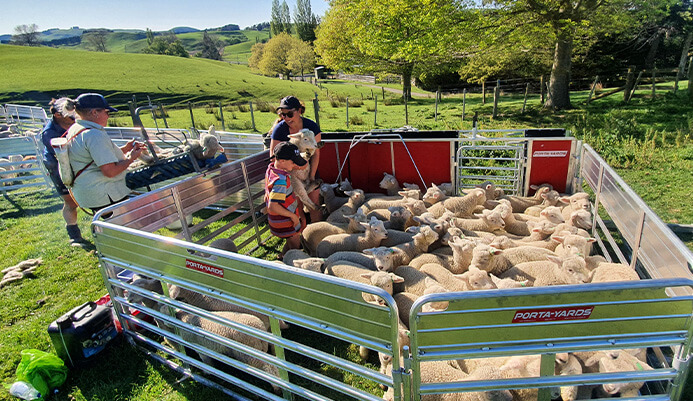

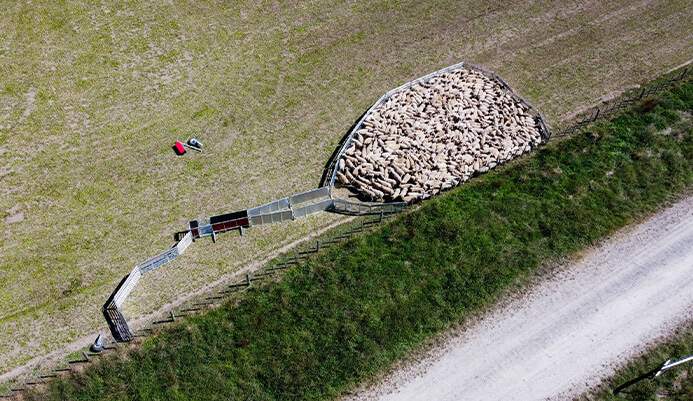

In Use
4-Year Warranty
FAQs

These are the unique features that make our Porta Yards the best in the world.

Solid Top Panels

Protects dog’s legs and is a psychological barrier for sheep resulting in more efficient stock flow. Keeps sheep vision low and forward, preventing them from wanting to jump.

Effective Hydraulic Lift

Hand pump requiring minimum effort.

Flexible Trailer & Loading Ramp

Flexible drafting trailer also doubles as a single-deck loading ramp.

Versatile Hinge System

Having the gates pinned together on the trailer allows them to come off the unit in a concertina-style system. This hinge system is also compatible with other common sheep yard brands.

New Road-legal Option

Offers new road-legal option.

Optimal Stockflow

Heavy-duty rubber floor and plastic sides used on the race, provides ultimate stockflow whilst being quiet and minimising chance of carrying disease.

Robust Waltex Toolbox

Handy toolbox mounted on the front.

Lightweight, High-Tensile Aluminium Panels

Standard panels are 1m high, optimal for modern-day sheep.

The Portayard ‘Standard’ is configured of the following components.

Porta Yard Component: Mobile Draft Unit / Trailer Chassis

1x Mobile Draft Unit / Trailer Chassis

Features 2x Drop-In Gates, Drafting Gates, Hydraulic Lift Assembly, Gate Holders, 13″ Wheels & Equipment Box

CODE: 3PY

Porta Yard Component: 2.1m x 1.0m Alloy Panel

16x 2.1m x 1.0m Alloy Panel

Solid-top, lightweight aluminium panels

CODE: 21AYP

Porta Yard Component: 1.0m x 1.0m Alloy Panel

2x 1.0m x 1.0m Alloy Panel

Solid-top, lightweight aluminium panels

CODE: 1AYP

2x Alloy L Brace

Heavy-duty aluminium L brace that can be placed in any areas of the yard needing extra support

CODE: LBA

3x 3-Way Adaptor

To allow 3 panels to be easily joined in a 'T' formation

CODE: 3WA

20x Alloy Yard Pin

Durable, alloy pins used to join panels together

CODE: AYP

Customise your unit by adding any components sold separately.
Learn more about our Parts & Service »

Choose one of the following options to add to your base set to suit your farming needs.

+ 4.8m Single-lane Handling Race (0.9m wide)

Includes: 4x 2.4m x 1.0m Solid Race Panels (24AFRP), 1x Alloy U Bow (AUBF), 1x Alloy U Bow c/w 0.9m Hinged Gate (AUBG09), 10x Alloy Yard Pins (AYP)

+ 4.8m Double-lane Handling Race (1.8m wide)

Includes: 6x 2.4m x 1.0m Solid Race Panels (24AFRP), 1x Alloy W Bow (AWBF), 1x Alloy W Bow c/w Swing Gate (AWBFGS), 1x Alloy W Bow c/w 0.9m Hinged Gate (AWBG09), 2x 1.0m x 1.0m Solid Race Panels (1AYP), 25x Alloy Yard Pins (AYP)

+ Large Docking Set

Includes: 2x 1.0m x 1.0m Alloy Yard Panels (1AYP), 4x 2.1m x 1.0m Alloy Yard Panels (21AYP), 2x Alloy L Braces (LBA), 2x 3-Way Adaptors (3WA), 10x Alloy Yard Pins (AYP)
