What makes Porta Yard ‘best of breed’…
These are the unique features that make our Porta Yards the best in the world.
Solid Top Panels
Protects dog’s legs and is a psychological barrier for sheep resulting in more efficient stock flow. Keeps sheep vision low and forward, preventing them from wanting to jump.
Effective Hydraulic Lift
Hand pump requiring minimum effort.

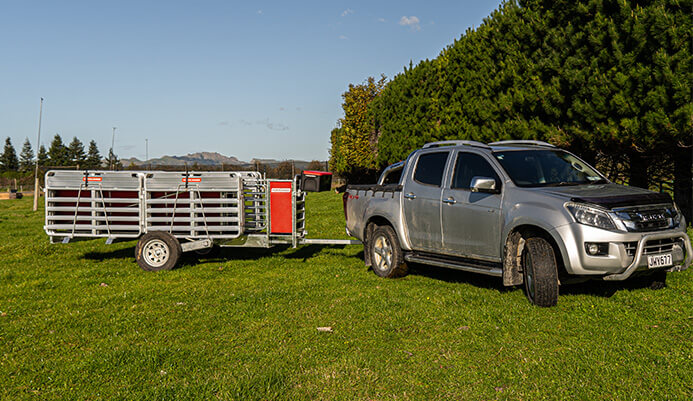

Flexible Trailer & Loading Ramp
Flexible drafting trailer also doubles as a single-deck loading ramp.
Versatile Hinge System
Having the gates pinned together on the trailer allows them to come off the unit in a concertina-style system. This hinge system is also compatible with other common sheep yard brands.
New Road-legal Option
Offers new road-legal option.
Optimal Stockflow
Heavy-duty rubber floor and plastic sides used on the race, provides ultimate stockflow whilst being quiet and minimising chance of carrying disease.
Robust Waltex Toolbox
Handy toolbox mounted on the front.
Lightweight, High-Tensile Aluminium Panels
Standard panels are 1m high, optimal for modern-day sheep.
Included Components

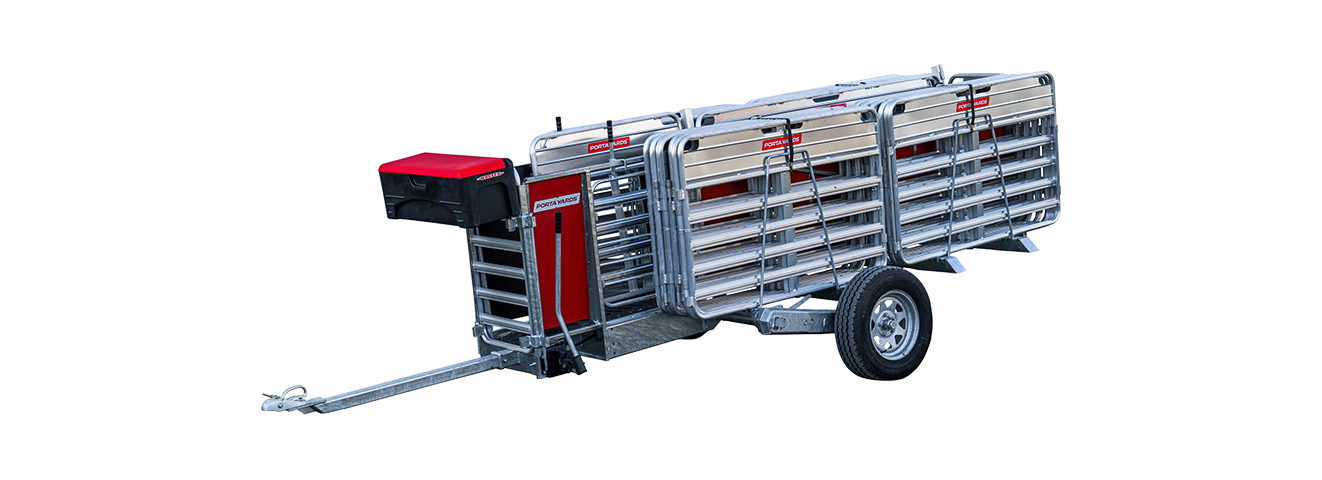

The Porta Yard ‘Maxi’ is configured of the following components.
1x Mobile Draft Unit / Trailer Chassis
Features 2x Drop-In Gates, Drafting Gates, Hydraulic Lift Assembly, Gate Holders, 13″ Wheels & Equipment Box
CODE: 3PYM
40x 1.5m x 1.0m Alloy Panel
Solid-top, lightweight aluminium panels
CODE: 15AYP
2x 1.0m x 1.0m Alloy Panel
Solid-top, lightweight aluminium panels
CODE: 1AYP
1x Alloy U-Bow c/w 2.1m Hinged Gate
U-Bow frame with 2.1m railed gate, with pin latch
CODE: 21AUBG
6x Alloy L Brace
Heavy-duty aluminium L brace that can be placed in any areas of the yard needing extra support
CODE: LBA
4x 3-Way Adaptor
To allow 3 panels to be easily joined in a 'T' formation
CODE: 3WA
45x Alloy Yard Pin
Durable, alloy pins used to join panels together
CODE: AYP
Customise your unit by adding any components sold separately.
Learn more about our Parts & Service »
Add-On Options
Choose one of the following options to add to your base set to suit your farming needs.
+ 7.2m Single-lane Handling Race (0.9m wide)
Includes: 6x 2.4m x 1.0m Solid Race Panels (24AFRP), 2x Alloy U Bow (AUBF), 1x Alloy U Bow c/w 0.9m Hinged Gate (AUBG09), 15x Alloy Yard Pins (AYP)
+ 7.2m Double-lane Handling Race (1.8m wide)
Includes: 6x 2.4m x 1.0m Solid Race Panels (24AFRP), 1x Alloy W Bow (AWBF), 1x Alloy W Bow c/w Swing Gate (AWBFGS), 1x Alloy W Bow c/w 0.9m Hinged Gate (AWBG09), 2x 1.0m x 1.0m Solid Race Panels (1AYP), 25x Alloy Yard Pins (AYP)
+ Large Docking Set
Includes: 9x 2.4m x 1.0m Solid Race Panels (24AFRP), 2x Alloy W Bow (AWBF), 1x Alloy W Bow c/w Swing Gate (AWBFGS), 1x Alloy W Bow c/w 0.9m Hinged Gate (AWBG09), 2x 1.0m x 1.0m Solid Race Panels (1AYP), 20x Alloy Yard Pins (AYP)
+ Road Legal Kit
Includes: 1x Rear Light Bar, 2x Mudguards, 1x Hydraulic Suspension System Kit
* Excludes registration and warrant of fitnessSpecifications
CAPACITY
500 ewes with lambs, using an existing fence
OVERALL DIMENSIONS
3.82m x 1.98m length of chassis and width from outside of wheels (L x W)
WEIGHT
1,000kgs fully loaded
Download Layout Example In Use
“Porta Yards remove a lot of the stress from sheep handling – for both the stock and for us. The solid top quarter panel also reduces the risk of injury to one of our most valuable farm assets – our dogs.”
Jim Cornes Farm Manager
4-Year Warranty
All Porta Yards come with Landquip’s renowned ‘Best of Breed’ 4-year warranty.
- Covers any defective workmanship on all parts & components
FAQs
-
Do you ship internationally?
Yes, we do. We have multiple dealers around the world. Contact us to find out more.
-
Do these fit with other brands of sheep handling equipment?
Yes, they do.
-
Can we customise the component configuration?
Yes, each Maxi unit has capacity for extra components.
Have questions about our Porta Yards? Call us on +64 6 879 4992
